AC MOTORS And DRIVES
Types of Motor:
An Electrical Motor is a machine that converts electrical energy into mechanical energy. It is used for generating torque to lift loads, move objects & various other mechanical work. In the following article, we will discuss the different types of electric motors such as AC motors, DC motors and special types of motors etc.
An electrical motor is mainly classified into three types.
· AC Motors
· DC Motors
· Special Motors
DC MOTORS:
The DC motor is a fundamental type of electric motor designed exclusively for operation with Direct Current (DC). Unlike AC motors, DC motors function with only two wires due to the absence of phases in DC power. These motors were among the earliest motor inventions and possess the advantage of straightforward speed control through voltage adjustments. They provide uncomplicated means for starting, stopping, accelerating, and reversing. DC motors are known for their cost-effective initial installation, but as their size and power increase, maintenance expenses also rise considerably.
AC MOTORS:

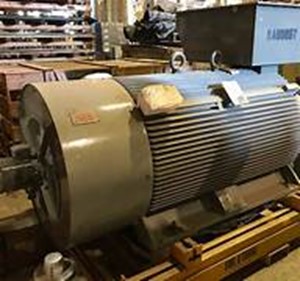

The AC electric motor converts AC (Alternating Current) electrical energy into mechanical energy. These electric motors are powered using a single-phase or three-phase alternating current. The basic working principle of AC motor is the rotating magnetic field (RMF) generated by the stator winding when an alternating current is passed through it. The rotor (having its own magnetic field) follows the RMF & starts rotation.
AC induction motors, also commonly referred to as asynchronous motors, are a prevalent type of electric motor that operates on alternating current (AC) power. They are widely used in various applications due to their efficiency and robust design. AC induction motors typically consist of two main parts: the stator and the rotor.
Rotor: The rotor is the moving part of the motor. It can be either a squirrel-cage rotor, which consists of conductive bars embedded in iron laminations, or a wound rotor, which has coils of wire. The rotor rotates in response to the magnetic field generated by the stator.
SPECIAL MOTORS:
Precision Control: Servo motors excel in providing precise and accurate control of position, velocity, and torque. This level of control is essential in applications where precision is paramount, such as CNC machines, robotics, and automated manufacturing processes.
High Response Rate: Servo motors have an exceptionally fast response time, enabling them to quickly and accurately adjust their output in response to changes in input commands. This rapid response is vital for maintaining tight control and accuracy in dynamic systems.
Excellent Torque-to-Inertia Ratio: Servo motors typically have a high torque-to-inertia ratio, which means they can provide substantial torque relative to their size and weight. This feature is crucial for applications requiring both power and agility, like robotic arms.
Broad Range of Motion: Servo motors are capable of continuous rotation or limited-angle rotation, making them suitable for applications that require a wide range of motion, such as pan-and-tilt cameras or articulated robot joints.
Feedback Systems: Servo systems often incorporate feedback devices like encoders or resolvers. These devices provide real-time position and speed feedback, enabling closed-loop control and accurate position tracking. This feedback loop enhances the motor’s performance and reliability.
Energy Efficiency: Servo motors are known for their energy efficiency, as they consume power only as needed to maintain the desired position or speed. This energy-conscious operation can result in cost savings over time.
Customizable: Servo motor systems can be tailored to specific application requirements. Parameters like speed, torque, and control algorithms can be adjusted and customized to suit the task at hand.
Reduced Maintenance: Servo motors typically have a longer service life and require less maintenance compared to some other motor types, thanks in part to their brushless design.
Regenerative Braking: In certain configurations, servo systems can provide regenerative braking, which converts excess energy back into the electrical system, further enhancing energy efficiency.
Integration with Controllers: Servo motors are often used in conjunction with advanced motion controllers and software, allowing for complex motion profiles, trajectory planning, and synchronization in multi-axis systems.
Drives:

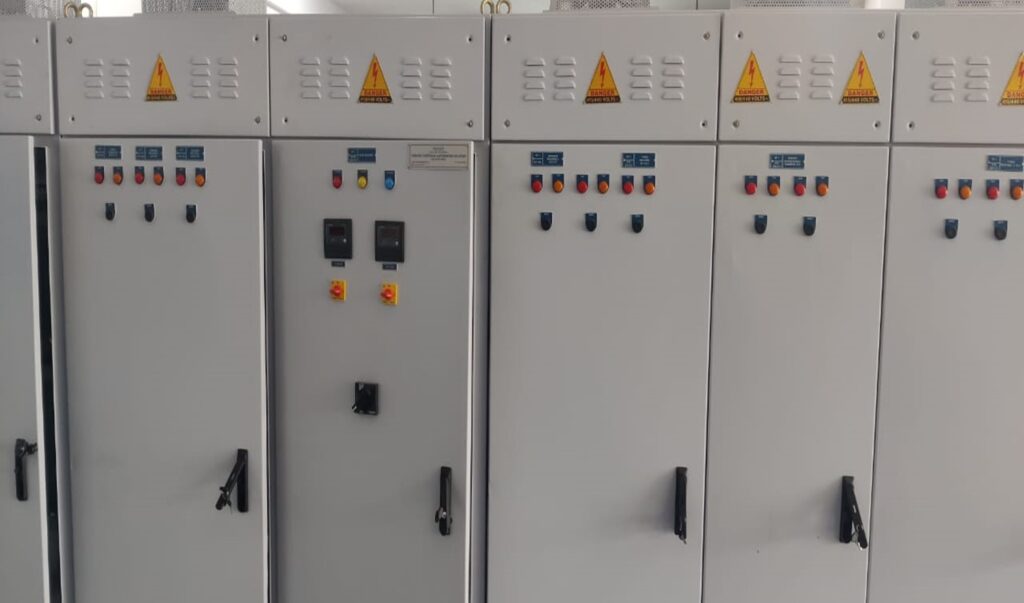

DC drives and AC drives (also known as variable frequency drives or VFDs) are control systems used to regulate the speed and performance of electric motors in various applications. Each type of drive has its own characteristics, advantages, and disadvantages, making them suitable for different situations.
DC Drives:
Type of Motor: DC drives are primarily used to control DC motors. These motors are known for their reliability and simplicity.
Speed Control: DC drives offer precise speed control, making them well-suited for applications requiring accurate speed adjustments, such as conveyor belts, cranes, and printing presses
Starting Torque: DC motors and drives can provide high starting torque, making them suitable for applications where heavy loads need to be accelerated quickly.
Efficiency: DC drives can be highly efficient, especially in applications requiring constant speed.
Maintenance: DC motors require more maintenance compared to AC motors because they have brushes and commutators that wear over time. However, modern brushless DC motors are less maintenance-intensive.
Cost: The initial cost of DC drives and motors is generally lower compared to AC drives and motors.
AC Drives (Variable Frequency Drives - VFDs):
Type of Motor: AC drives are used to control AC induction motors, which are widely used in industrial applications.
Speed Control: VFDs provide variable speed control, allowing for precise adjustments to match the load requirements. This flexibility is advantageous in applications where speed changes are frequent.
Starting Torque: AC drives can provide good starting torque when needed, but it may not be as high as that of DC drives in certain situations.
Efficiency: AC drives are generally more energy-efficient than DC drives, especially at partial loads, which can result in energy savings.
Maintenance: AC motors do not have brushes and commutators, so they require less maintenance compared to DC motors.
Cost: The initial cost of AC drives and motors may be higher than DC counterparts, but the energy savings and reduced maintenance costs can offset this over time.
Regenerative Braking: Some AC drives have regenerative braking capabilities, which can recover and reuse energy, improving overall efficiency.
Integration with Modern Systems: AC drives are well-suited for integration with modern automation and control systems, making them suitable for Industry 4.0 and smart manufacturing applications.
In summary, the choice between DC drives and AC drives depends on the specific requirements of the application. DC drives are known for their precise speed control and high starting torque, while AC drives offer energy efficiency and reduced maintenance. Modern industrial applications often favor AC drives due to their energy-saving features and compatibility with advanced control systems, but DC drives still have their place in certain niche applications.
